EV Charger Modular PCS SI3P
5-12 kW

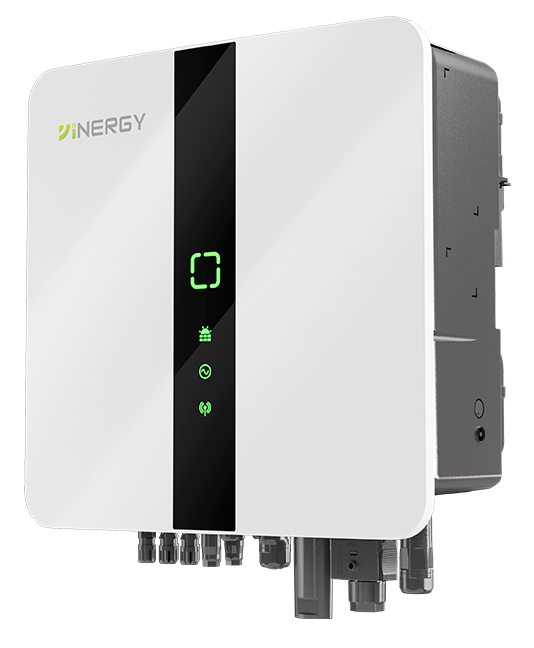

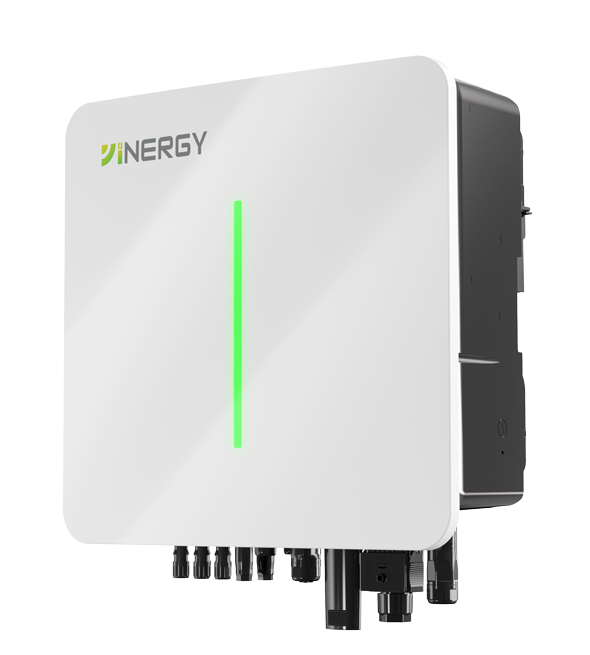

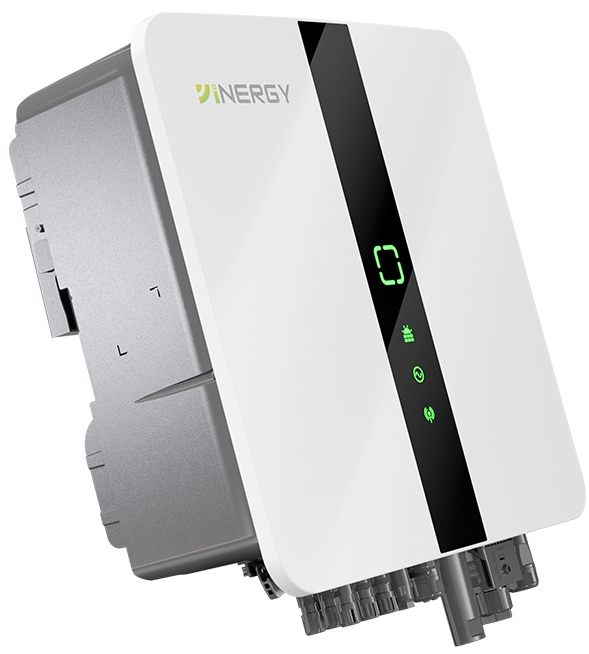

Three-phase Hybrid Inverter
5-12 kW | 3 Phase | 2 MPPTs | HV
Unleashing the Power of Efficiency and Stability

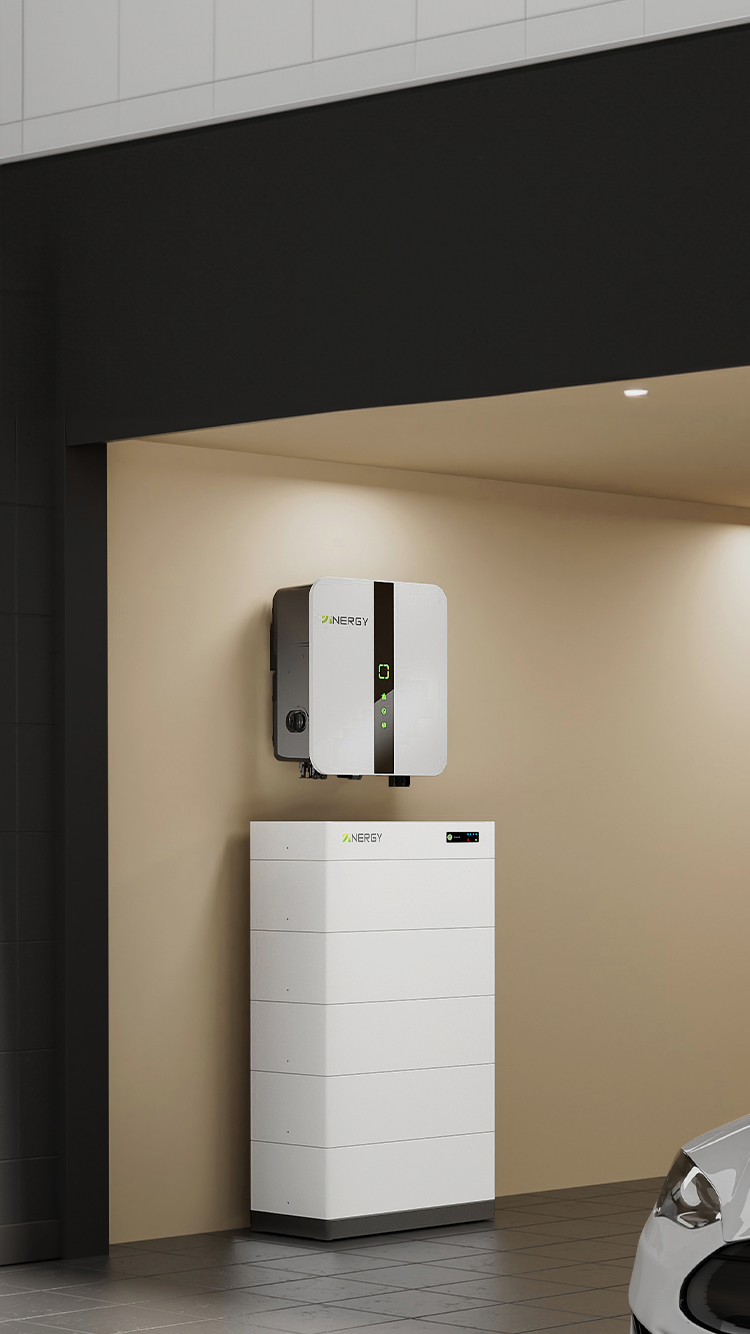

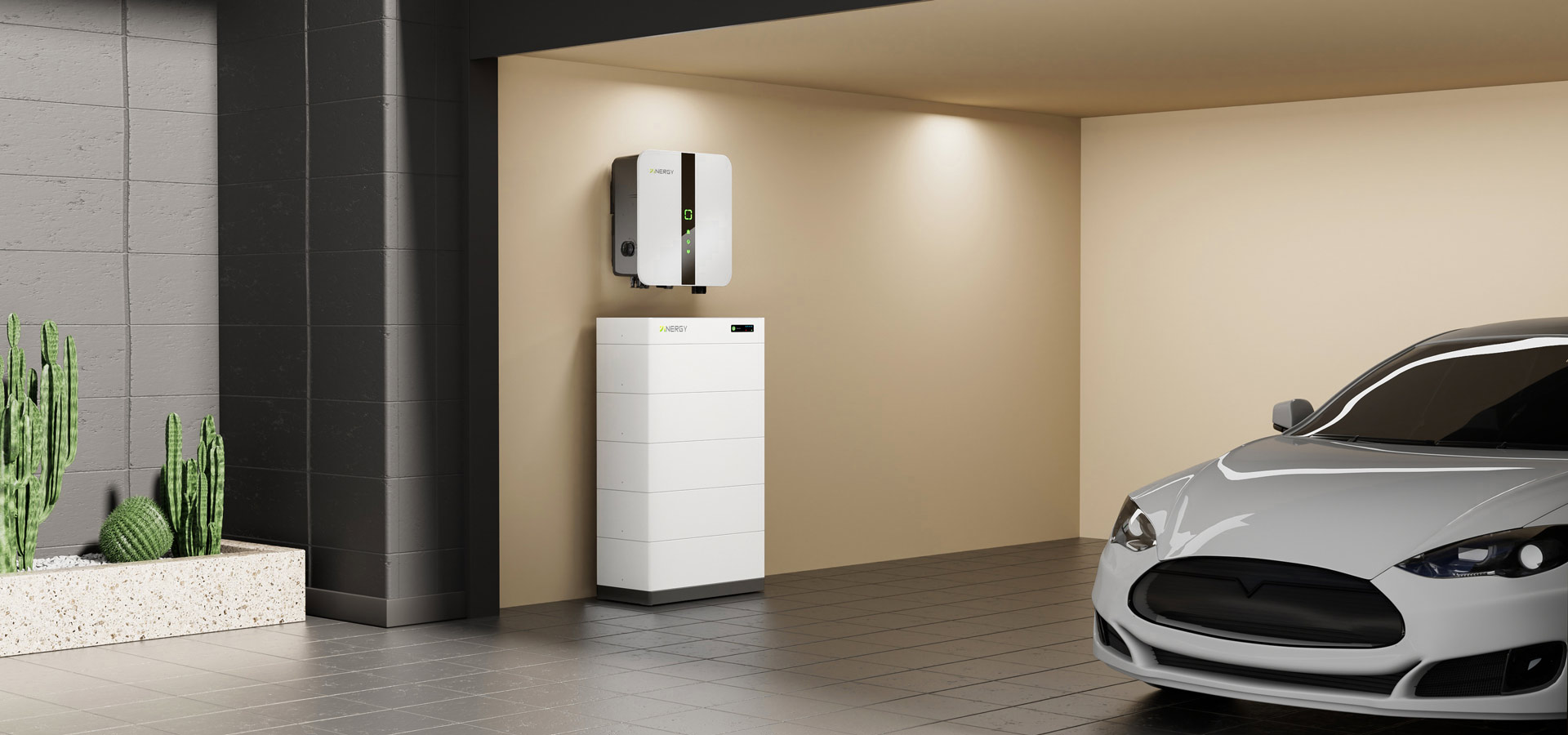

YINERGY Residential three-phase Energy Storage Inverter, harnessing leading-edge digital and power electronics technology and featuring an innovative hardware and software architecture, achieves up to 98.0% photovoltaic efficiency. It offers remote platform communication, DC and AC lightning protection, and IP66 protection. Additionally, it offers the option of intelligent arc protection and can be connected to solar panels and high-voltage lithium batteries. With plug-and-play convenience and high reliability, it comprehensively meets the energy management needs of residential, villa, rooftop solar power, and emergency energy applications.


+0.3%
Efficiency
+1kWh / 5 days
Generation
Advantages
Top Materials
Adopt top manufacturers devices such as Infineon and TI, guarantee stronger performance
Great Connectors
International high-end brand connectors such as Phoenix and Amphenol,
ensure stable and safe connection
Cutting-edge Design
Full die-casting construction, with a modern and simple ID design, delivering a unique visual experience.
Quicker Installation
Independent design for backup power and grid ports, featuring spring-loaded quick connectors for efficient and convenient installation
High Benefit
+0.3% generation efficiency
+1kWh every 5 days
High Compatibility
Compatible with top brand batterys such as Pylontech, Sunwoda, etc
150%
DC/AC ratio up to 1.5,
generate more energy
Easy Installation
Save 40% Installation Time
<4ms
UPS level switching time
High Compatibility
Compatible with top brand batterys such as Pylontech, Sunwoda, etc
IP66
High degree of protection against harsh environments
Max.10 in Parallel
Support up to 10 units in parallel on grid port
User-friendly
One Platform Easy Control
Reliable
10 Years Warranty
Leading Brand of Components
Parameters
5-12 kW
Three-phase Hybrid Inverter
HI-3P12K-H-Y1
HI-3P12K-H-Y1
HI-3P10K-H-Y1
HI-3P8K-H-Y1
HI-3P6K-H-Y1
HI-3P5K-H-Y1
Max. PV Array Power
24000W
Max. Input Power
18000 W
Max. Input Voltage
1000 V
Rated Input Voltage
650 V
Start-up voltage
110 V
MPPT Operating Voltage Range
180 V~950 V
Max. Input Current per MPPT
14 A / 28 A
Max. Short-circuit Current per MPPT
20 A / 35 A
No. of MPP Trackers
2
Battery Voltage Range
170 V~600 V
Max. Charge / Discharge Current
30 A / 30 A
Rated Power
10000 W
Dimensions (W x H x D)
514 x 496 x 205 mm
Max. PV Array Power
20000W
Max. Input Power
15000 W
Max. Input Voltage
1000 V
Rated Input Voltage
650 V
Start-up voltage
110 V
MPPT Operating Voltage Range
180 V~950 V
Max. Input Current per MPPT
14 A / 28 A
No. of MPP Trackers
2
Battery Voltage Range
170 V~600V
Max. Charge / Discharge Current
30 A / 30 A
Rated Power
10000 W
Dimensions (W x H x D)
514 x 496 x 205 mm
Max. Input Power
12000 W
Max. Input Voltage
1000 V
Rated Input Voltage
650 V
Start-up Input Voltage
180 V
Max. Input Current per MPPT
14 A
No. of MPP Trackers
2
No. of Strings per MPP Tracker
1
Battery Voltage Range
170 V~600V
Max. Charge / Discharge Current
30 A/ 30 A
Rated Power
8000 W
Dimensions (W x H x D)
514 x 496 x 205 mm
Max. PV Array Power
12000 W
Max. Input Power
9000 W
Max. Input Voltage
1000 V
Rated Input Voltage
650 V
Start-up voltage
110 V
MPPT Operating Voltage Range
180 V~950 V
Max. Input Current per MPPT
16 A
Max. Short-circuit Current per MPPT
20 A
No. of MPP Trackers
2
Battery Voltage Range
170 V~600 V
Max. Charge / Discharge Current
20 A / 20 A
Rated Power
6000 W
Dimensions (W x H x D)
514 x 496 x 205 mm
Product Model
HI-3P6K-H-Y1
Max. PV Array Power
10000 W
Max. Input Power
7500 W
Max. Input Voltage
1000 V
Rated Input Voltage
650 V
Start-up Input Voltage
110 V
MPPT Operating Voltage Range
180 V~950 V
Max. Input Current per MPPT
16 A
Max. Short-circuit Current per MPPT
20 A
No. of MPP Trackers
2
Battery Voltage Range
170 V~600 V
Max. Charge / Discharge Current
20 A / 20 A
Rated Power
5000 W
Dimensions (W x H x D)
514 x 496 x 205 mm
