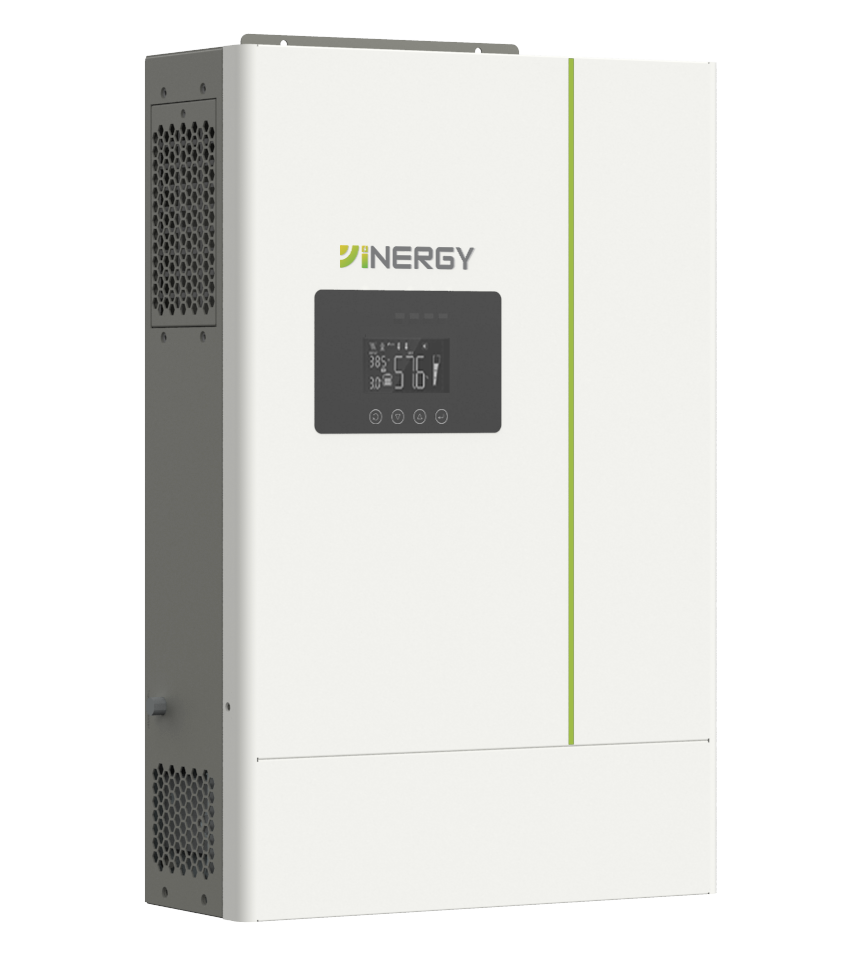

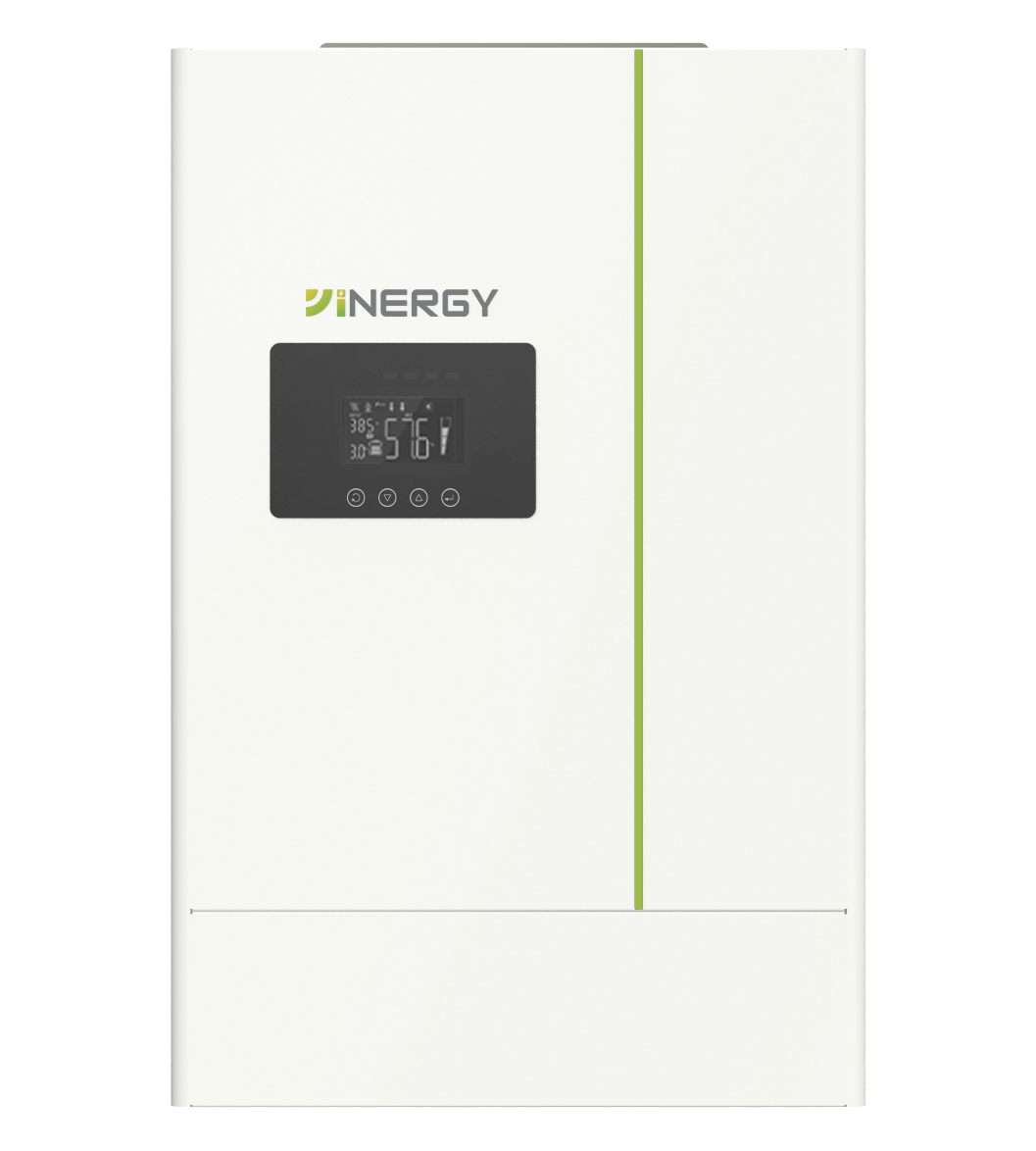

OG Series
Off Grid Inverter
1.2kW | 3.6kW | 5kW | 6.5kW
Perfectly Supports High-Power Appliances

YINERGY's off-grid inverter supports high-power appliances with over 10kVA startup power and handles up to 16.5kVA surge power. This high-performance system ensures your home runs smoothly and efficiently, providing reliable energy conversion and enhanced power protection for sensitive devices.

300%
Surge Power for 200ms
9000 WP
PV Input
Advantages
120A
Fast Charge
40W Standby Power
industry-leading
reduces energy consumption.
Load Separation Design
Ensures stable operation of critical loads during surges
54 protection algorithms
real-time monitoring of temperature, voltage, and current
9 Units in Parallel
Supports grid-tied operation and up to 9 units in parallel, ideal for microgrid scenarios and flexible energy system expansion.
High Power Loads Compatible
Superior performance with real-world loads, effortlessly supporting high-power appliances like air conditioners with a startup power of over 10kVA
Parameters
OG Series
Off Grid Inverter
OG2-1P2K-D
OG2-1P2K-D
OG-1P6K5-DT
OG-1P5K-PDT
OG-1P3K6-DT
OG-1P1K2-T
PV Maximum Input Power
3000 W
Max. PV Open Circuit Voltage
450 VDC
MPPT Range Operating Voltage
30 ~ 400 VDC
Max. Solar Input Current
18 A
Battery Type
Lithium / Lead Acid
Nominal Battery Voltage
12 V ( 1*12 V )
Nominal voltage
208 / 220 / 230 / 240; L + N + PE
Voltage Range
170 ~ 280 ±3 (UPS mode); 90 ~ 280 ±3 (Appliance mode)
Frequency
50 / 60 Hz (Auto Adaptive)
Rated Capacity
2500 VA / 2000W
Surge Power
4000 VA
Waveform
Pure Sine Wave
Load Output Nominal Voltage
208 / 220 / 230 / 240 VAC
Load Output Voltage Range
195 ~ 253 VAC
Load Output Nominal Frequency
50 / 60 Hz
Load Output Frequency Range
49 ~ 51 Hz ±0.1% / 59 ~ 61 Hz ±0.1%
Transfer Time
10 ms UPS mode ＜15ms Appliance mode
Peak Efficiency (PV to INV)
99.5%
Peak Efficiency (Battery to INV)
91%
Admissible Power Factor
-0.8~+0.8
Max.AC Charge Current
100 A
Max PV Charge Current
100 A
Built-in Transfer
Yes
Built-in Power Booster
Yes
Dimensions, D x W x H
110 × 278 × 360 mm
Package Size, D × W × H
203 × 344 × 452 mm
Net Weight (Kg)
5 kg
Communication Interface
RS485 /RS232
Safety Regulation
EN 62109-1:2010,EN 62109-2:2011,IEC 61683:1999
Ingress Protection
IP21
Operating Temperature Range
-10°C~ 50°C
Storage Temperature
-15°C~ 60%
Humidity
5% ~ 95% (Non-condensing)
Rated Capacity
8120 VA / 6500 W
PV Maximum Input Power
9000 W
Max. PV Open Circuit Voltage
500 VDC
MPPT Range Operating Voltage
60 ~ 450 VDC
Max. Solar Input Current
28 A
Battery Type
Lithium, Lead-acid,AMG,Gel
Nominal Battery voltage
48V(4*12V)
Nominal voltage
208/220 / 230 / 240; L + N + PE
Voltage Range
170 ~ 280 ±3 (normal mode); 90 ~ 280 ±3 (Appliance mode)
Rated Capacity
8120 VA / 6500 W
Second Output Capacity
4150 VA / 4150 W
Surge Power
16000 VA
Peak Efficiency (PV to INV)
96.50%
Peak Efficiency (Battery to INV)
93.50%
Battery Over Voltage
61 V
Charging Current
2 ~ 120 A
Max. Charge Current (PV+AC)
120 A
Dimensions, D × W × H (mm)
129 × 338 × 529.6
Net Weight (kg)
12
Communication Interface
RS485 / RS232 / USB / Dry Contact
Protection
IP21
Rated Capacity
6250 VA / 5000 W
PV Maximum Input Power
6500 W
Max. PV Open Circuit Voltage
500 VDC
MPPT Range Operating Voltage
120 ~ 450 VDC
Max. Solar Input Current
18 A
Battery Type
Lithium, Lead-acid,AMG,Gel
Nominal Battery voltage
48V(4*12V)
Nominal voltage
208/220 / 230 / 240; L + N + PE
Voltage Range
170 ~ 280 ±3 (normal mode); 90 ~ 280 ±3 (Appliance mode)
Rated Capacity
6250 VA / 5000 W
Second Output Capacity
4150 VA / 4150 W
Surge Power
15000 VA
Parallel
9 Unit (1P & 3P)
Peak Efficiency (PV to INV)
96.50%
Peak Efficiency (Battery to INV)
93.50%
Battery Over Voltage
61V
Charging Current
2 ~ 80 A
Max. Charge Current (PV+AC)
80 A
Dimensions, D × W × H (mm)
129 × 338 × 529.61
Net Weight (kg)
12
Communication Interface
RS485 / RS232 / USB / Dry Contact
Protection
IP21
Rated Capacity
4500 VA / 3600 W
PV Maximum Input Power
6500 W
Max. PV Open Circuit Voltage
500 VDC
MPPT Range Operating Voltage
40 ~ 450 VDC
Max. Solar Input Current
18 A
Battery Type
Lithium, Lead-acid,AMG,Gel
Nominal Battery voltage
24V(2*12V)
Nominal voltage
208/220 / 230 / 240; L + N + PE
Voltage Range
170 ~ 280 ±3 (normal mode); 90 ~ 280 ±3 (Appliance mode)
Rated Capacity
4500 VA / 3600 W
Second Output Capacity
2300 VA / 2300 W
Surge Power
12000 VA
Feed-in Grid Voltage Range
195 ~ 253 VAC
Peak Efficiency (PV to INV)
96.00%
Peak Efficiency (Battery to INV)
92.00%
Overload Protection
1min@102%10s@110%3s@130%200ms@Load>150%
Battery Over Voltage
30.5 V
Charging Current
2 ~ 100 A
Dimensions, D × W × H (mm)
112 × 283 × 439.4
Net Weight (kg)
8.2
Communication Interface
RS485 / RS232 / USB / Dry Contact
Protection
IP21
Rated Capacity
1500 VA / 1200 W
PV Maximum Input Power
1200 W
Max. PV Open Circuit Voltage
125 VDC
MPPT Range Operating Voltage
20 ~ 100 VDC
Max. Solar Input Current
14 A
Battery Type
Lithium, Lead-acid,AMG,Gel
Nominal Battery voltage
12V(1*12V)
Nominal voltage
208 /220 / 230 / 240; L + N + PE
Voltage Range
170 ~ 280 ±3 (normal mode); 90 ~ 280 ±3 (Appliance mode)
Frequency
50 / 60 Hz (Auto Adaptive)
Rated Capacity
1500 VA / 1200 W
Second Output Capacity
1380 VA / 1200 W
Surge Power
4000 VA
Nominal Voltage
208 / 220 / 230 / 240 VAC
Feed-in Grid Voltage Range
195 ~ 253 VAC
Nominal Frequency
49 / 51 Hz ±0.1%
Peak Efficiency (PV to INV)
94.00%
Peak Efficiency (Battery to INV)
90.00%
Overload Protection
10min@102%1min@120%10s@150%200ms@Load>200%
Admissible Power Factor
-0.8~+0.8
Charging Voltage
FV MODE: 13.5 V
settable: 12 ~ 14.9 V
CV MODE: 14.1 V
settable: 12 ~ 15 V
Battery Over Voltage
15 V
Charging Current
2 ~ 60 A
Built-in Power Booster
Yes
Dimensions, D × W × H (mm)
91 × 236 × 347
Net Weight (Kg)
4.5
Communication Interface
RS485 / RS232
Protection
IP21
