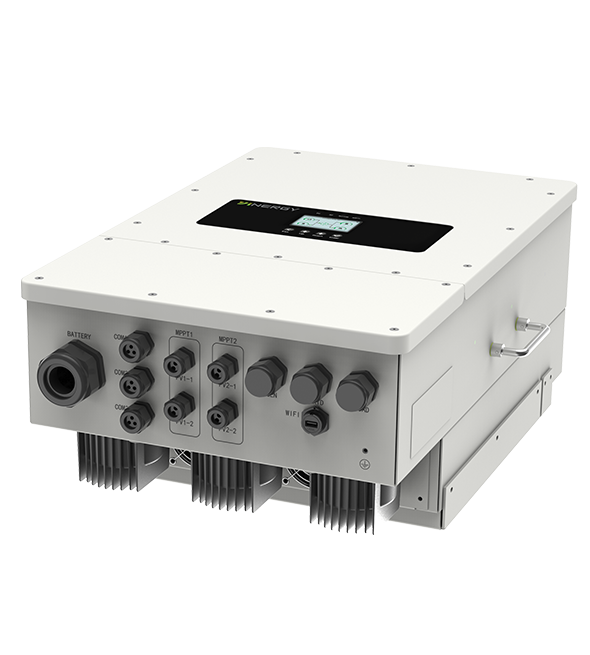

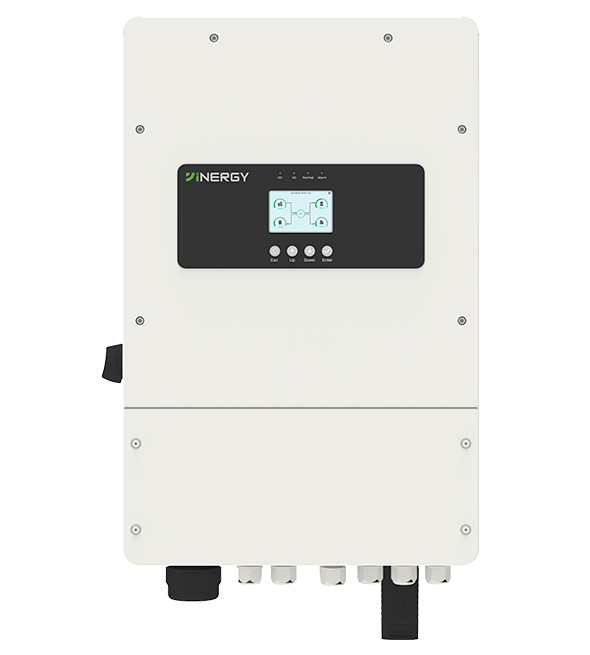

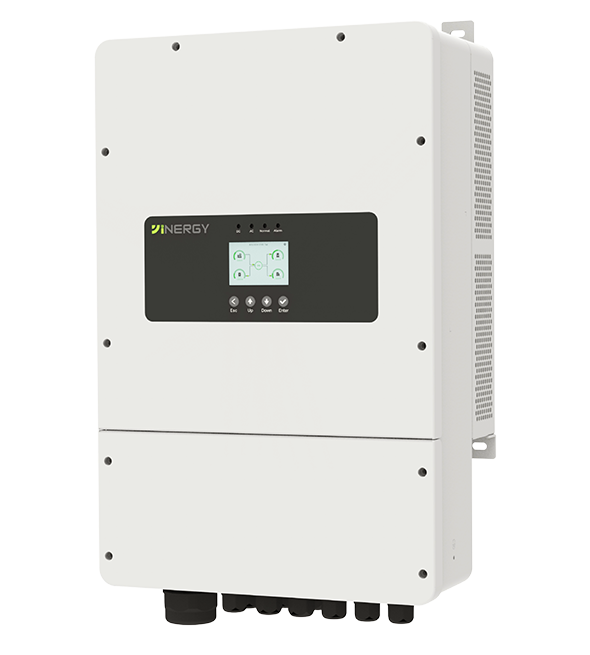

Hi Series
Hybrid Inverter
3kW | 5kW | 6kW | 8kW | 10kW| 12kW
Efficient and Reliable Hybrid Inverter Solution.

YINERGY Hybrid Inverter supports 200% PV oversizing and 110% AC overload, with <4ms seamless switchover to power high-demand appliances effortlessly. This high-performance system ensures efficient and stable energy conversion, delivering reliable protection for critical loads and sensitive devices.

IP65
Protection Degree
< 4ms
Single Unit UPS-level Switchover Time
Advantages
210A
Max. charging/ discharging current
200%
PV oversizing
80V
Low start-up voltage
Parameters
Hi Series
Hybrid Inverter
HI-1P12K-LV
HI-1P12K-LV
HI-1P10K-LV
HI-1P8K-LV
HI-1P6K-LV
HI-1P5K-LV
HI-1P3K-LV
Max. PV Array Power
24000 W
Max. PV Input Power
19200 W
Max. PV Input Voltage
510 V
Rated Voltage
360 V
Start-up Voltage
80 V
MPPT Range
90 V - 425 V
Battery Type
Lead acid / Lithium
Rated Voltage
48 V
Voltage Range
40V-60V
Max.Current
210 A
Rated Output Power
12000 W
Max. Output Power
13200 VA
Max. Input Power
13200 VA
Peak Efficiency
96.00%
MPPT Efficiency
>99%
Communication Interface
LED + LCD / CAN, RS485, CT, NTC, WiFi
Type of Cooling
Intelligent Air Cooling
Size(L*H*W)/mm
411 × 631 × 238 mm
Weight/kg
30 kg
Operating Temperature Range
-25 ℃~ +60 ℃ ( >45 ℃ derating)
Ingress protection
IP65
Max. PV Array Power
20000 W
Max. PV Input Power
16000 W
Max. PV Input Voltage
510 V
Rated Voltage
360 V
Start-up Voltage
80 V
MPPT Range
90 V - 425 V
Battery Type
Lead acid / Lithium
Rated Voltage
48 V
Voltage Range
40V-60V
Max.Current
200 A
Rated Output Power
10000 W
Max. Output Power
11000 VA
Max. Input Power
11000 VA
Peak Efficiency
96.00%
MPPT Efficiency
>99%
Communication Interface
LED + LCD / CAN, RS485, CT, NTC, WiFi
Type of Cooling
Intelligent Air Cooling
Size(L*H*W)/mm
411 × 631 × 238 mm
Weight/kg
30 kg
Operating Temperature Range
-25 ℃~ +60 ℃ ( >45 ℃ derating)
Ingress protection
IP65
Max. PV Array Power
16000 W
Max. PV Input Power
12800 W
Max. PV Input Voltage
510 V
Rated Voltage
360 V
Start-up Voltage
80 V
MPPT Range
90 V - 425 V
Battery Type
Lead acid / Lithium
Rated Voltage
48V
Voltage Range
40V-60V
Max.Current
190 A
Rated Output Power
8000 W
Max. Output Power
8800 VA
Max. Input Power
8800 VA
Peak Efficiency
96.00%
MPPT Efficiency
>99%
Communication Interface
LED + LCD / CAN, RS485, CT, NTC, WiFi
Type of Cooling
Intelligent Air Cooling
Size(L*H*W)/mm
411 × 631 × 238 mm
411 × 631 × 238 mm
30 kg
Operating Temperature Range
-25 ℃~ +60 ℃ ( >45 ℃ derating)
Ingress protection
IP65
Max. PV Array Power
12000 W
Max. PV Input Power
9600 W
Max. PV Input Voltage
510 V
Rated Voltage
360 V
Start-up Voltage
80 V
MPPT Range
90 V - 425 V
Battery Type
Lead acid / Lithium
Rated Voltage
48V
Voltage Range
40V-60V
Max.Current
135 A
Rated Output Power
6000 W
Max. Output Power
6600 VA
Max. Input Power
6600 VA
Peak Efficiency
96.00%
MPPT Efficiency
>99%
Communication Interface
LED + LCD / CAN, RS485, CT, NTC, WiFi
Type of Cooling
Intelligent Air Cooling
Size(L*H*W)/mm
411 × 631 × 236 mm
Weight/kg
28.6 kg
Operating Temperature Range
-25 ℃~ +60 ℃ ( >45 ℃ derating)
Ingress protection
IP65
Max. PV Array Power
10000 W
Max. PV Input Power
8000 W
Max. PV Input Voltage
510 V
Rated Voltage
360 V
Start-up Voltage
80 V
MPPT Range
90 V - 425 V
Battery Type
Lead acid / Lithium
Rated Voltage
48V
Voltage Range
40V-60V
Max.Current
120 A
Rated Output Power
5000 W
Max. Output Power
5500 VA
Max. Input Power
5500 VA
Peak Efficiency
96.00%
MPPT Efficiency
>99%
Communication Interface
LED + LCD / CAN, RS485, CT, NTC, WiFi
Type of Cooling
Intelligent Air Cooling
Size(L*H*W)/mm
411 × 631 × 236 mm
Weight/kg
28.6 kg
Operating Temperature Rang
-25 ℃~ +60 ℃ ( >45 ℃ derating)
Ingress protection
IP65
Max. PV Array Power
6000 W
Max. PV Input Power
4800 W
Max. PV Input Voltage
510 V
Rated Voltage
360 V
Start-up Voltage
80 V
MPPT Range
90 V - 425 V
Battery Type
Lead acid / Lithium
Rated Voltage
48 V
Voltage Range
40V-60V
Max.Current
75 A
Rated Output Power
3000 W
Max. Output Power
3300 VA
Max. Input Power
3300 VA
Peak Efficiency
96.00%
MPPT Efficiency
>99%
Communication Interface
LED + LCD / CAN, RS485, CT, NTC, WiFi
Type of Cooling
Intelligent Air Cooling
Size(L*H*W)/mm
411 × 631 × 236 mm
Weight/kg
28.6 kg
Operating Temperature Range
-25 ℃~ +60 ℃ ( >45 ℃ derating)
Ingress protection
IP65
